Hydraulic Automatic Road Blocker System with Shallow Buried Design 100T Load Capacity and PLC Control for Vehicle Access

Hydraulic Automatic Road Blocker System with Shallow Buried Design 100T Load Capacity and PLC Control for Vehicle Access
Hydraulic Automatic Road Blocker System with Shallow Buried Design 100T Load Capacity and PLC Control for Vehicle Access

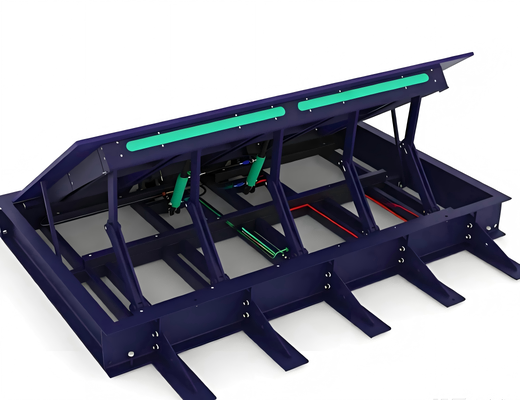

Large Image :  Hydraulic Automatic Road Blocker System with Shallow Buried Design 100T Load Capacity and PLC Control for Vehicle Access

Product Details:
Place of Origin: China
Brand Name: Sikerui
Certification: CE / RoHS / FCC
Model Number: SST5000-3QM
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Wooden Box
Delivery Time: 5-7days
Payment Terms: T/T,L/C
Supply Ability: 5000 Units Per Month
Contact Now Chat Now

Hydraulic Automatic Road Blocker System with Shallow Buried Design 100T Load Capacity and PLC Control for Vehicle Access

Description
Dimension: 2000 * 1200 * 300mm Thickness: 16mm
Elevated: 500mm Embedded: 30mm
Voltage: 220V
Highlight:

Shallow Buried Road Blocker System

,

100T Load Hydraulic Road Blocker

,

PLC Controlled Vehicle Access Control Barrier

Road blocker manufacturering companies,road blocking systems,road blocker hydraulic automatic

Shallow-buried Road blocker

Model number: SST5000-QM

  • Dimension: 2000 * 1200 * 300mm
  • Thickness: 16mm
  • Elevated: 500mm
  • Embedded: 30mm
  • Voltage: 220V
outline dimension (Interception width + 200 mm) × 1480 mm × 305 mm (length × width × height)
interception altitude 800MM±20 MM
Interception width 3000 MM
net weight of the machine 1.6T
pre-embedded depth 300MM
load bearing capacity Hydrostatic load: 100T
Drive mode hydraulic pressure
elevation time 1 to 4 seconds
surface preparation Spray Red/White/Black/Yellow/White
levels of protection IP68
Warning method Optional LED red warning light strip
working voltage AC/220V or AC 380V ± 50/60Hz
power rating 3KW
Hydraulic Station Net Weight (Including Control) 100KG
working temperature -4 0 ℃ to +7 0 ℃ (low-temperature option with hydraulic oil heating system)
control system mode PLC programmable logic controller
control function Release/Block, Count, Fire Alarm Link, Emergency Ascend, Top Vehicle Prevention, Traffic Light Alert, 3G/4G, Local Control, Remote Control
interface form Switching quantities, optional (RS485/232/422, TCP/IP, CAN, etc.)

Hydraulic Automatic Road Blocker System with Shallow Buried Design 100T Load Capacity and PLC Control for Vehicle Access 0

Hydraulic Automatic Road Blocker System with Shallow Buried Design 100T Load Capacity and PLC Control for Vehicle Access 1
