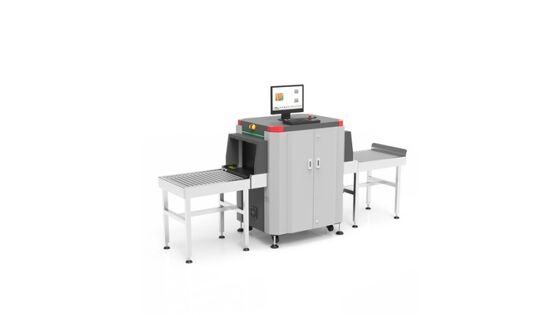

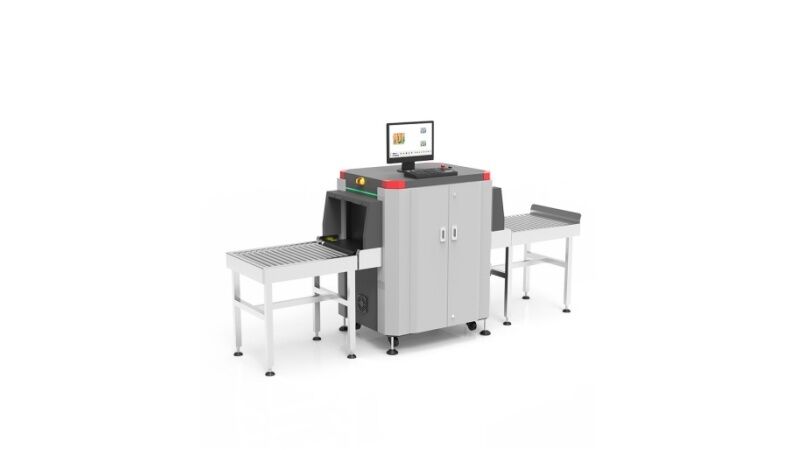

3D Airport Baggage X Ray Machine Scanner Detector 40 AWG 220V

3D Airport Baggage X Ray Machine Scanner Detector 40 AWG 220V
3D Airport Baggage X Ray Machine Scanner Detector 40 AWG 220V

Large Image :  3D Airport Baggage X Ray Machine Scanner Detector 40 AWG 220V

Product Details:
Place of Origin: China
Brand Name: Sikerui
Certification: CE / RoHS / FCC
Model Number: SST-SE5335S
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $8000-15000
Packaging Details: Wooden Box
Delivery Time: 5-7days
Payment Terms: T/T,L/C
Supply Ability: 5000 Units Per Month
Contact Now Chat Now

3D Airport Baggage X Ray Machine Scanner Detector 40 AWG 220V

Description
Tunnel Size: 556(W) X 360(H)mm Dimensions: 1359(L) X 877(W) X 1230(H)mm
Convery Max Load: 150 Kg Belt Speed: 0.23m/s Bidirectional
Voltage: 140kV Wire Detectability: 40 AWG
Spatial Resolution: 1.0 Mm Horizontal, 1.0 Mm Vertical Steel Penetration: 36 Mm Steel Typical
Tube Current: 0.7 MA Cooling: Sealed Oil Bath With Forced Air
Duty Cycle: 100%,No Warm-Up Procedure Required Beam Direction: Diagonally Upward
Detector: L-Shaped Array Dual-energy: Yes
Operating Temperature: 0°C- 40°C 32ºF – 104ºF Storage Temperature: -20°C- 60°C -4ºF- 140ºF
Humidity: Up To 95% Non-Condensing Power Requirements: 220VAC±10%, 50/60Hz, 10A Max
Highlight:

40 AWG airport baggage x ray machine

,

220V airport baggage x ray machine

,

220V x ray baggage scanner machine

X-Ray Security Scanner

Advanced X-ray security scanner designed for comprehensive inspection of packages and baggage. Ensures high levels of security through superior imaging and threat detection capabilities.

Key Benefits:

  • Enhanced Threat Detection: Identifies potential threats with high accuracy.
  • High Throughput: Fast scanning speed for efficient operations.
  • User-Friendly Interface: Easy to operate and maintain.
  • Durable Construction: Built to withstand demanding environments.
  • Dual-Energy Imaging: Provides detailed material discrimination.

Target Industries: Logistics, Transportation, Government, Critical Infrastructure.

Typical Applications: Airport security, customs checkpoints, mailrooms, event security.

Product Details

FOB Unit
Set
FOB Price
0

Technical Specifications

Attribute Value
Tunnel Size 556(W) x 360(H)mm
Dimensions 1359(L) x 877(W) x 1230(H)mm
Convery Max Load 150 kg
Belt Speed 0.23m/s Bidirectional
Voltage 140kV
Wire Detectability 40 AWG
Spatial Resolution 1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration 36 mm steel Typical
Tube Current 0.7 mA
Cooling Sealed Oil Bath with Forced Air
Duty Cycle 100%,No Warm-Up Procedure Required
Beam Direction Diagonally Upward
Detector L-Shaped Array
Dual-energy Yes
Operating Temperature 0°C- 40°C 32ºF – 104ºF
Storage Temperature -20°C- 60°C -4ºF- 140ºF
Humidity Up to 95% Non-Condensing
Power Requirements 220VAC±10%, 50/60Hz, 10A Max

3D Airport Baggage X Ray Machine Scanner Detector 40 AWG 220V 0

Tag:

airport baggage scanner,

baggage x ray machine,

x ray baggage scanner machine
