3D TriEye Vision X Ray Airport Baggage Scanner For Luggage

3D TriEye Vision X Ray Airport Baggage Scanner For Luggage
3D TriEye Vision X Ray Airport Baggage Scanner For Luggage

Large Image :  3D TriEye Vision X Ray Airport Baggage Scanner For Luggage

Product Details:
Place of Origin: China
Brand Name: Sikerui
Certification: CE / RoHS / FCC
Model Number: SST-SE6040T
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $8000-15000
Packaging Details: Wooden Box
Delivery Time: 5-7days
Payment Terms: T/T,L/C
Supply Ability: 5000 Units Per Month
Contact Now Chat Now

3D TriEye Vision X Ray Airport Baggage Scanner For Luggage

Description
Tunnel Size: 625(W) X 420(H)mm Dimensions: 1984(L) X 1024(W) X 1558(H)mm
Convery Max Load: 165kg Belt Speed: 0.23m/s Bidirectional
Spatial Resolution: 1.0 Mm Horizontal, 1.0 Mm Vertical Duty Cycle: 100%, Warm-Up Procedure Required
Highlight:

3D TriEye airport baggage scanner

,

X Ray airport baggage scanner

,

3D TriEye luggage x ray scanner

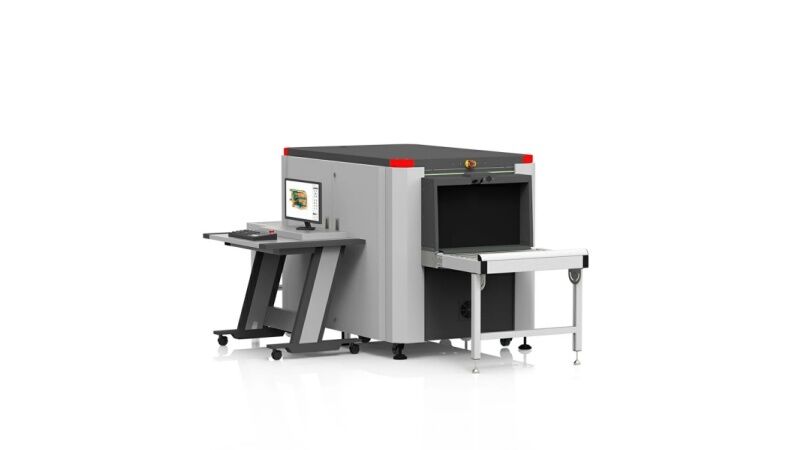

TriEye Vision X-ray Baggage Scanner SST-SE6040T 3D

The TriEye Vision X-ray Baggage Scanner SST-SE6040T 3D is a state-of-the-art security solution designed for efficient and reliable screening of baggage and parcels. Its advanced imaging technology provides detailed and accurate detection of potential threats.

Key Benefits:

  • Enhanced threat detection capabilities
  • High throughput for efficient screening
  • User-friendly interface for easy operation
  • Compact design for space-saving installation
  • Reliable performance and low maintenance

Target Industries and Applications: Airports, customs facilities, transportation hubs, government buildings, and any location requiring advanced security screening.

Product Attributes

FOB Unit: set
Product MOQ: 1
FOB Price: 0
Packaging & Delivery: Negotiable

Technical Specifications

General Specifications

Attribute Value
Tunnel Size 625(W) x 420(H)mm
Dimensions 1984(L) x 1024(W) x 1558(H)mm
Conveyor Max Load 165kg
Belt Speed 0.23m/s Bidirectional

X-Ray Generator

Attribute Value
Voltage 180kV
Wire Detectability 40 AWG
Spatial Resolution 1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration 36 mm steel Typical
Tube Current 0.7 mA
Cooling Sealed Oil Bath with Forced Air
Duty Cycle 100%, Warm-Up Procedure Required
Beam Direction Diagonally Upward
Detector L-Shaped Array
Dual-energy Yes

Working Environment

Attribute Value
Operating Temperature 0°C- 40°C 32ºF – 104ºF
Storage Temperature -20°C- 60°C -4ºF- 140ºF
Humidity Up to 95% Non-Condensing
Power Requirements 110VAC/220VAC ±10%, 50/60Hz, 10A Max

3D TriEye Vision X Ray Airport Baggage Scanner For Luggage 0
