Hydraulic Drive Road Barrier Gate with K4 Impact Resistance and PAS68 Security Rating for Vehicle Access Control

Name: Hydraulic Drive Road Barrier Gate with K4 Impact Resistance and PAS68 Security Rating for Vehicle Access Control
Brand: Shenzhen Sikerui Information System Technology Co., Ltd
SKU: SST-ACBG-4M
Price: 6500 USD
Availability: InStock

All Products

Automatic Rising Bollards
(25)

Rising Security Bollards
(9)

Road Blocker System
(29)

Spike Tyre Killer
(11)

Road Barrier Gate
(20)

Security Turnstile Gate
(27)

Full Height Turnstile Gate
(14)

Fancy Fence Gate
(9)

Security Inspection Device
(6)

Certification

I'm Online Chat Now

Hydraulic Drive Road Barrier Gate with K4 Impact Resistance and PAS68 Security Rating for Vehicle Access Control

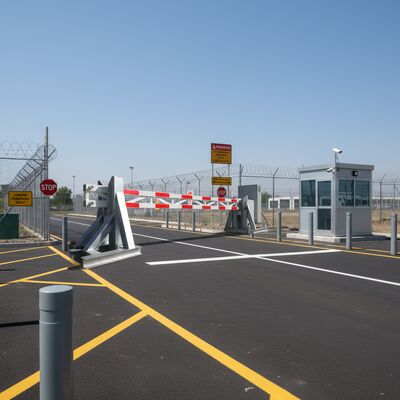

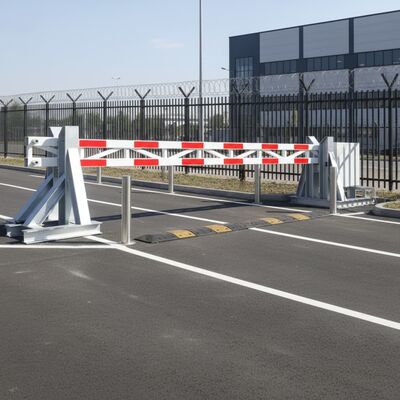

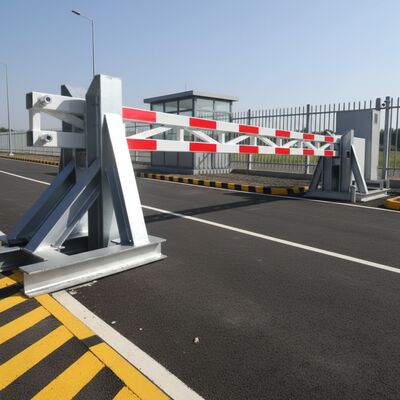

Large Image : Hydraulic Drive Road Barrier Gate with K4 Impact Resistance and PAS68 Security Rating for Vehicle Access Control

Product Details:

Place of Origin:	china
Brand Name:	SST
Certification:	PAS68
Model Number:	SST-ACBG-4M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US6500
Packaging Details:	standard size
Delivery Time:	5-12Day
Payment Terms:	T/T
Supply Ability:	1000

Contact Now Chat Now

Hydraulic Drive Road Barrier Gate with K4 Impact Resistance and PAS68 Security Rating for Vehicle Access Control

Description

Drive Mode:	Built-in Hydraulic Drive	Impact Resistance:	K4 Standards
Barrier Width:	6m	Total Height:	900 Mm
Free Space:	500 Mm	Opening Speed:	8s

High security rising arm barrier, model DUAL HSRAB Barrierimpact resistance equivalent to K4 standards 6.8 ton vehicletravelling @48km/h.

A steel rope is installed inside the bar profile in accordance withEN 12385-4 + A1: 2008. The barrier arm consists of two100/100/5 HRS parts.

The width of the barrier: 6m, total height 900 mm, 500 mm freespace under the barrier, the arm has a height of 400 mm.

PAS68 Impact Hinged Gate

FEAUTRES & BENEFITS

Features

Hydraulic
+K4
+Opens in 8s

Benefits

Strong construction
Easy to open
Equiped in photocells
Galvanization + RAL

Physical Dimensions:To suit site requirement
Impact Absorption:1852KJ
Full PAS68 (2005) Security Rating:V/7500(N3)/80/90:5.7/25
Tested Model:1.0m H x 3.8m opening
Construction:The framework is constructed from fully welded, heavy gauge, steel angle and box section and hi-tensile structural steel. The gate is constructed with up to a 4.5m opening using a heavy steel cross beam. The foundations comprise of a rebar cage set in concrete to a depth of 470mm. Side catcher assemblies are set within the rebar reinforcements with the hinged post is fixed to studs grouted into the concrete foundation.
