Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68

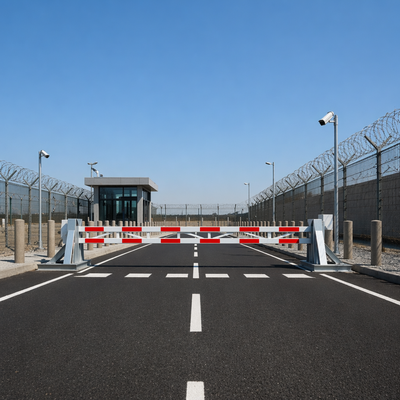

Large Image : Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68

Product Details:

Place of Origin:	china
Brand Name:	SST
Certification:	PAS68
Model Number:	SST-ACBG-4M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US6500
Packaging Details:	standard size
Delivery Time:	5-12Day
Payment Terms:	T/T
Supply Ability:	1000

Contact Now Chat Now

Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68

Description

Impact Resistance:	K4 Standards	Free Space:	500 Mm
Opening Speed:	8s	Barrier Width:	6m
Drive Mode:	Built-in Hydraulic Drive	Total Height:	900 Mm

Anti-collision Parking Gate, Anti-terrorism Barrier Gate, Anti-collision Grade PAS68

High security rising arm barrier, model DUAL HSRAB Barrier with impact resistance equivalent to K4 standards for 6.8 ton vehicles traveling at 48km/h. A steel rope is installed inside the bar profile in accordance with EN 12385-4 + A1: 2008. The barrier arm consists of two 100/100/5 HRS parts. The width of the barrier: 6m, total height 900 mm, 500 mm free space under the barrier, the arm has a height of 400 mm.

PAS68 Impact Hinged Gate

Features

Hydraulic operation
K4 impact rating
Opens in 8 seconds

Benefits

Strong construction
Easy to open
Equipped with photocells
Galvanization + RAL coating

Technical Specifications

Physical Dimensions: To suit site requirement

Impact Absorption: 1852KJ

Full PAS68 (2005) Security Rating: V/7500(N3)/80/90:5.7/25

Tested Model: 1.0m H x 3.8m opening

Construction: The framework is constructed from fully welded, heavy gauge, steel angle and box section and hi-tensile structural steel. The gate is constructed with up to a 4.5m opening using a heavy steel cross beam. The foundations comprise of a rebar cage set in concrete to a depth of 470mm. Side catcher assemblies are set within the rebar reinforcements with the hinged post is fixed to studs grouted into the concrete foundation.
