304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed

304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed

Large Image :  304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed

Product Details:
Place of Origin: China
Brand Name: Sikerui
Certification: CE / RoHS / FCC
Model Number: SSTBZ-D03
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $300-500
Packaging Details: Wooden Box
Delivery Time: 5-7days
Payment Terms: T/T,L/C
Supply Ability: 5000 Units Per Month
Contact Now Chat Now

304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed

Description
Operation Noise: ≤60 DB Overall Dimensions: 240*180*1015mm
Channel Width: 550-1200mm Communication Interface: RS485
Communication Distance: ≤1200m Operating Voltage: AC220V ±10%, 50HZ
Highlight:

304 stainless steel security turnstile gate

,

vertical three roller barrier with RS485

,

30 people/minute passing speed turnstile

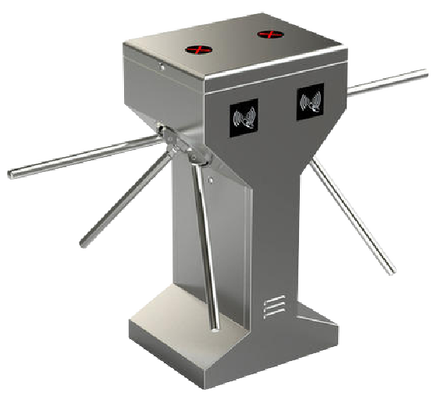

Vertical Three Roller Barrier / Vertical Three Turnstile Gate
Technical Specifications
  • Structure: Constructed from stamped 304 stainless steel sheet, rust-proof and durable
  • Operating Voltage: AC220V ±10%, 50HZ
  • Rated Power: 100W/24A
  • Operating Temperature: -15°C to 70°C
  • Relative Humidity: ≤90%, no condensation
  • Input Interface: 12V level signal or 12V pulse signal (pulse width > 100ms, driving current >10mA)
  • Passing Speed: 30 people/minute (normally open), 20-30 people/minute (normally closed)
  • Dimensions: 1200×280×980mm, Passage Width: ≤550mm
  • Gate Operation Time: Adjustable speed via panel control
Key Features
Semi-automatic mechanical control
Automatic rod dropping after power failure
Compatible with IC card, ID card, barcode card, fingerprint and other identification devices
Smooth gate operation with low noise
Illegal break-in alarm function
Simple structure with high reliability
Widened direction indicating lights
Elegant appearance, rust-proof, durable and resistant to external damage
Remote control and management via supervisory computer
Card reading with or without memory function
Software-configurable venue capacity restrictions
Multiple working modes: two-way card reading, one-way card reading, and free passage
Product Gallery

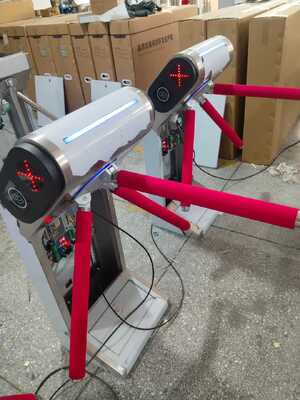

Vertical Three Roller Barrier front view Vertical Three Roller Barrier side view Vertical Three Roller Barrier installation view Vertical Three Roller Barrier close-up detail Vertical Three Roller Barrier operational view Vertical Three Roller Barrier technical components Vertical Three Roller Barrier complete unit
