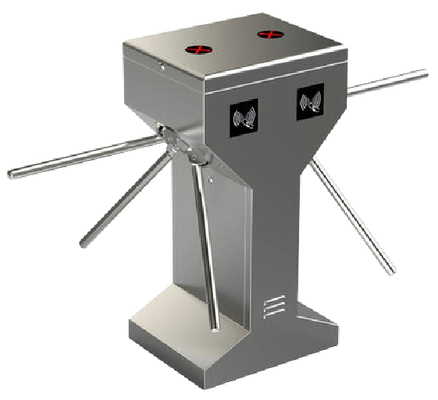

304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed

304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed

Large Image :  304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed

Product Details:
Place of Origin: China
Brand Name: Sikerui
Certification: CE / RoHS / FCC
Model Number: SSTBZ-D03
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $300-500
Packaging Details: Wooden Box
Delivery Time: 5-7days
Payment Terms: T/T,L/C
Supply Ability: 5000 Units Per Month
Contact Now Chat Now

304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed

Description
Property: Noise During Device Operation Value: ≤60 DB
Overall Dimensions: 240* Width 180* Height 1015mm； Channel Width: 550-1200mm；
Communication Interface: RS485 Electrical Standard; Communication Distance: ≤ 1200m;
Highlight:

bridge-type security turnstile gate

,

tripod turnstile with access control

,

stainless steel turnstile gate

Structure parameters
  • Structure: The whole structure of the product is formed by stamping 304 stainless steel sheet, which is rust-proof and durable.
  • Operating voltage: AC220 10% v, 50HZ
  • Rated power: 100W24A
  • Operating ambient temperature: -15°C-70°C
  • Relative humidity: relative humidity ≤90%, no condensation of moisture.
  • Input interface: 12V level signal or 12V pulse signal with pulse width > 100ms, driving current >10mA
  • Passing speed: 30 people/minute (normally open), 20-30 people/minute (normally closed)

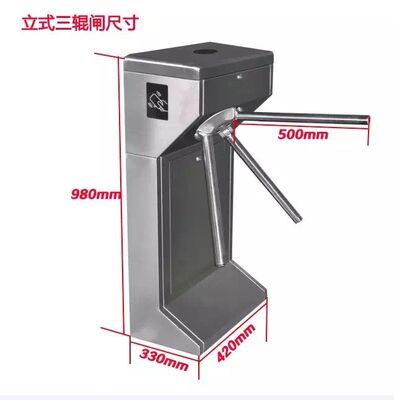

  • Size: 1200*280*980mm, passage width: ≤550mm
  • Time of gate opening and closing: the speed can be adjusted fast or slow on the panel.
  • Semi-automatic mechanical control
  • Automatic rod dropping after powering off
  • Compatible with IC card, ID card, bar code card, fingerprint and other card reading and identification devices.
  • The gate rods run smoothly with low noise.
  • Illegal break-in alarm function
  • The whole system is of simple structure and high reliability.
  • Widened direction indicating light
  • Elegant in appearance, rust-proof, durable and resistant to external damage.
  • Remote control and management can be realized through the supervisory computer.
  • It has the function of card reading either with memory or without memory.
  • Through software setting, the number of people entering the venue can be restricted.
  • Multiple working modes, namely, two-way card reading, one-way card reading and free passage.

  • 304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 0

    304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 1

    304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 2

    304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 3

    304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 4

    304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 5

    304 Stainless Steel Bridge-Type Tripod Turnstile with RS485 Communication Interface and 30 People/Minute Passing Speed 6
