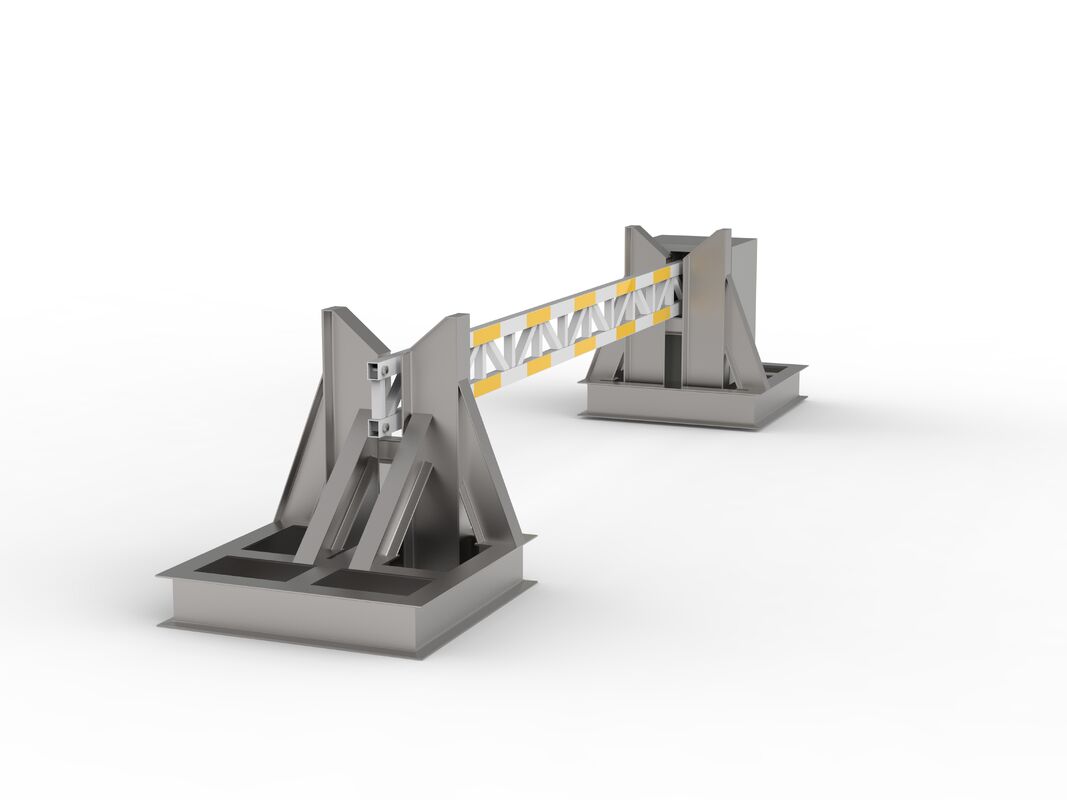

Impact Hinged Gate

Physical Dimensions:To suit site requirement
Impact Absorption:1852KJ
Full PAS68 (2005) Security Rating:V/7500(N3)/80/90:5.7/25
Tested Model:1.0m H x 3.8m opening
Construction:The framework is constructed from fully welded, heavy gauge, steel angle and box section and hi-tensile structural steel. The gate is constructed with up to a 4.5m opening using a heavy steel cross beam. The foundations comprise of a rebar cage set in concrete to a depth of 470mm. Side catcher assemblies are set within the rebar reinforcements with the hinged post is fixed to studs grouted into the concrete foundation.
