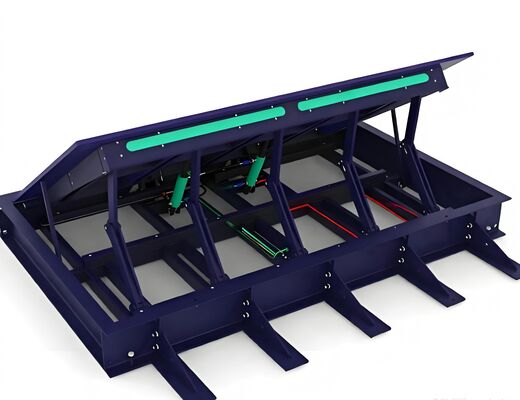

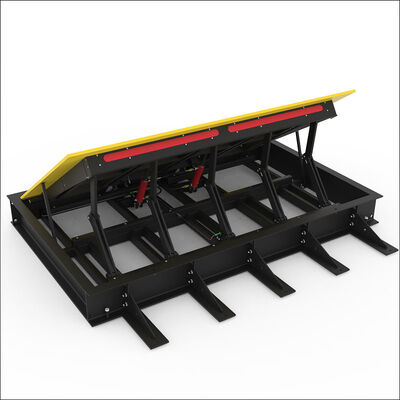

220V Hydraulic Automatic Road Blocker System Surface Mounted OEM

outline dimension

(Interception width + 200 mm) × 1480 mm × 305 mm (length × width × height)

interception altitude

800MM±20 MM

Interception width

3000 MM

net weight of the machine

1.6T

pre-embedded depth

300MM

load bearing capacity

Hydrostatic load: 100T

Drive mode

hydraulic pressure

elevation time

1 to 4 seconds

surface preparation

Spray Red/White/Black/Yellow/White

levels of protection

IP68

Warning method

Optional LED red warning light strip

working voltage

AC/220V or AC 380V ± 50/60Hz

power rating

3KW

Hydraulic Station Net Weight (Including Control)

100KG

working temperature

-4 0 ℃ to +7 0 ℃ (low-temperature option with hydraulic oil heating system)

control system mode

PLC programmable logic controller

control function

Release/Block, Count, Fire Alarm Link, Emergency Ascend, Top Vehicle Prevention, Traffic Light Alert, 3G/4G, Local Control, Remote Control

interface form

Switching quantities, optional (RS485/232/422, TCP/IP, CAN, etc.)
