220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier

220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier
220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier
220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier 220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier 220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier 220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier

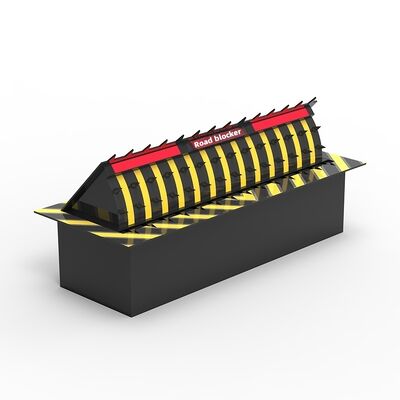

Large Image :  220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier

Product Details:
Place of Origin: China
Brand Name: Sikerui
Certification: CE / RoHS / FCC
Model Number: SST5000-4M
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $5000-10000
Packaging Details: Wooden Box
Delivery Time: 5-7days
Payment Terms: T/T,L/C
Supply Ability: 5000 Units Per Month
Contact Now Chat Now

220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier

Description
1: Control System: PLC Controls Programming Commands 2: Control Mode: Wireless Remote Control And Wire Control
3: Minimum Passing Pressure: Container Trucks Under 220 Tons Can Pass 4: Rated Voltage: AC380V 50Hz
5: System Power: 3.75KW 6: Power Unit: Electro-hydraulic Drive
7: PLC Built-in Encryption System: It Can Be Encrypted 8: Rising Time: ≤1-4S
9: Descending Time: ≤1-4S 10: Working Temperature: (-30℃~75℃) (low Temperature Device Installed -50~75℃)
11: Material: Q235 12: Lifting Height: 500mm And 600mm Are Optional
13: Standard Thickness Of Panel: 16mm, 20mm And 25mm Are Optional 14: Spine Length: 350mm
15: Box Size: (2000-6000)*1000*760mm 16: LED Warning Light: Monochrome And Multicolor Are Optional
17: Reflective Film: 3M Diamond Grade 18: Linkage Interface: Traffic Lights, Infrared, Ground Sense, License Plate Recognition, Etc
19: In Case Of Power Failure: It Can Be Raised And Lowered Manually 20: Protection Grade: IP68
21: Remote Control Range: 50-100M 22: Noise During Device Operation: ≤ 60dB.
Rated Voltage: AC380V 50Hz System Power: 3.75KW
Rising Time: ≤1-4S Descending Time: ≤1-4S
Working Temperature: -30℃~75℃ (optional -50~75℃) Lifting Height: 500mm Or 600mm
Highlight:

Shallow Mount hydraulic road blocker

,

hydraulic road blocker Barrier

,

Vehicle shallow road blocker

Shallow Mount Hydraulic Road Blocker Vehicle Access Control Barrier System
Road Blocker SST5000-4M

High-security vehicle access control solution designed for critical infrastructure protection. Engineered for high-traffic environments, this road blocker ensures reliable performance and maximum security against unauthorized vehicle access.

Key Benefits
  • Superior Security: Prevents unauthorized vehicle entry
  • Heavy-Duty Construction: Withstands heavy container trucks (up to 220 tons)
  • PLC Controlled: Programmable logic control for customized operation
  • Manual Override: Can be raised and lowered manually during power failure
  • Wide Temperature Range: Operates in extreme temperatures (-30℃ to 75℃, with optional low-temperature device)
Target Applications
Government facilities,  bases, airports, seaports, industrial complexes, toll booths, parking facilities, and any location requiring high-security vehicle access control.
Technical Specifications
Parameter Description
Control System PLC controls programming commands
Control Mode Wireless remote control and wire control
Minimum Passing Pressure Container trucks under 220 tons can pass
Rated Voltage AC380V 50Hz
System Power 3.75KW
Power Unit Electro-hydraulic drive
PLC Built-in Encryption System It can be encrypted
Rising Time ≤1-4S
Descending Time ≤1-4S
Working Temperature (-30℃~75℃) (low temperature device installed -50~75℃)
Material Q235
Lifting Height 500mm and 600mm are optional
Standard Thickness of Panel 16mm, 20mm and 25mm are optional
Spine Length 350mm
Box Size (2000-6000)*1000*760mm
LED Warning Light Monochrome and multicolor are optional
Reflective Film 3M diamond grade
Linkage Interface Traffic lights, infrared, ground sense, license plate recognition, etc
In case of power failure It can be raised and lowered manually
Protection Grade IP68
Remote Control Range 50-100M
Noise during device operation ≤ 60dB

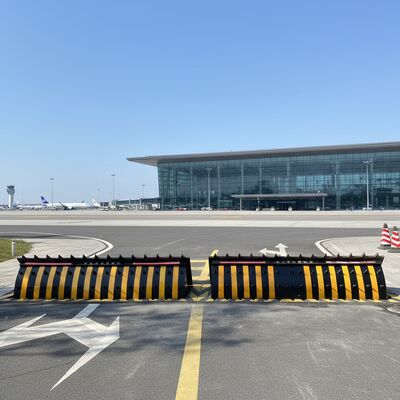

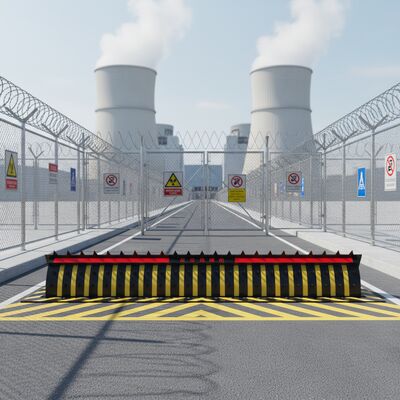

Product Images
220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier 0 220 Ton Capacity PLC Controlled IP68 Waterproof Hydraulic Road Blocker Vehicle Access Control Barrier 1
